TrexonŽ "Tachulator"
digital tachometer
with surface ft/minute calculator
Tachulator
Options and Prices
Tachulator
Specifications
Tachulator

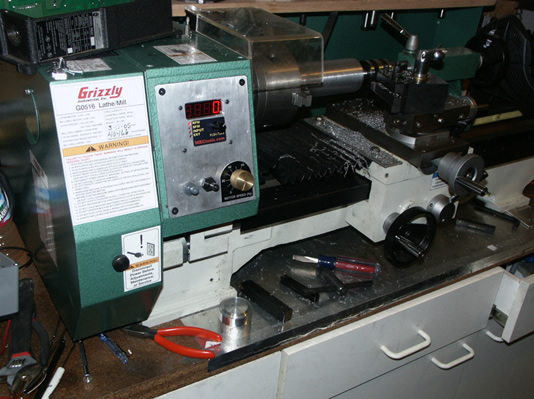

Mounting Examples

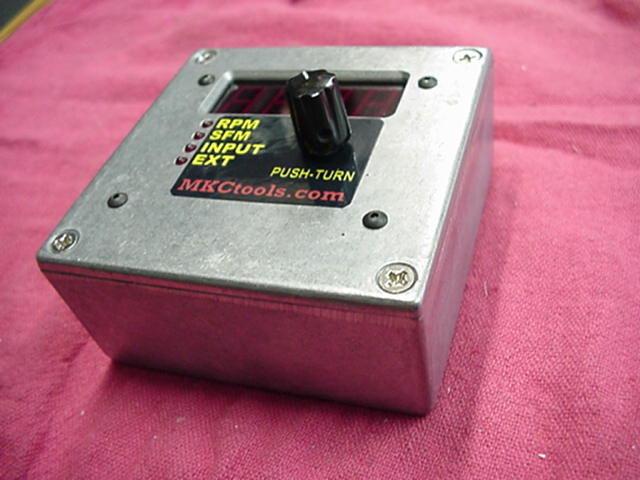

Here is a great little
tachometer for your lathe or mill that reads out surface feet/minute. That's
right, you get accurate rpm measurements from as low as 3 up to 9999 (±
1) rpm plus you can enter the diameter of the work piece or cutting tool
or your bandsaw wheel size via the rotary encoder and the tach will display
the surface feet/minute (or meters/minute) for any rpm. Just adjust the rpm of your machine
to get the desired SFM. Works great on wood or metal lathes, mills, drill
presses, bandsaws, conveyors, etc. Instantly switch from rpm to sfm at
the touch of a button. Large, easy to read 9/16" tall filtered bright Red
4 digit readout. LEDs tell which function
is being displayed. Dip switch lets you select from 1 to 16 marks per
revolution for the optical sensor. Mark your pulley, spindle, collar
or anything that turns at spindle speed. The sensor has a built in IR light
source so it will work inside a belt cover or headstock. There is a sensor sensitivity
adjustment on the circuit board so you can adjust for optimal reading without going
back and physically moving the sensor. Mounting is easy with small screws or double
faced foam tape. The tach is designed and manufactured by Trexon,Inc. in Canada. It
is a robust and stable microprocessor based circuit and units have been in service for over 10 years with
no problems reported. It will pay for itself in convenience and man hours
saved, not to mention getting better finishes and the most life out of
your expensive cutting tools buy cutting at the recommended surface feet per minute for
each application. Operates on any 9 to 12 volt dc power source. Power transformer is included
with all models in housings. Extra optical sensors available for those
with 3 in 1 machines or other multiple applications. PC board and firmware
copyrighted. All units come with 1 year factory warranty. See the links above for mounting examples and ordering information.
Order by Email skip@mkctools.com
Or Call 817-319-2297
Texas residents add 8.25% sales tax.
